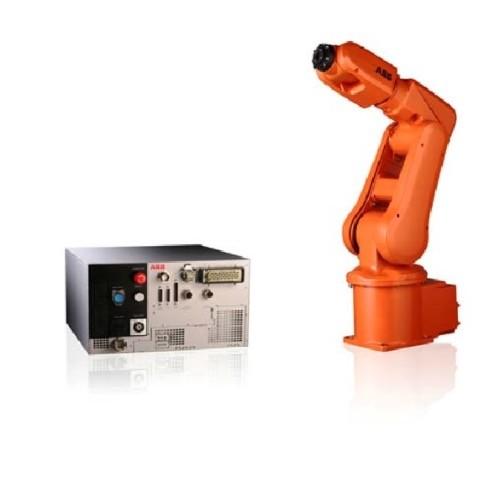

ABB IRB120 With 6 Axis Robot Arm With Payload 3kg Reach 580mm Of Industrial Robot For Pick And Place
ABB’s 6 axis robot – for flexible and compact production. The IRB 120 robot is the latest addition to ABB’s new fourthgeneration of robotic technology. It is ideal for material handling and assembly applications and provides an agile, compact and lightweight solution with superior control and path accuracy.
Description:
| item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, India, Russia, Spain, South Korea, Japan, Australia |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Condition | New |
| Place of Origin | Switzerland |
| Brand Name | ABB |
| Weight | 25kg |
| Warranty | 1 Year |
| Weight (KG) | 25kg |
| Type | IRB120 |
| Reach | 580MM |
| Payload | 3KG |
| Armload | 0.3KG |
| Height | 700MM |
| Weight | 25KG |
| Position repeatability | 0.01MM |
| Robot base | 180 x 180MM |
| Protection | IP30 |
| Controller | IRC5 Compact/IRC5 Single Cabinet |
Key features:
Compact and lightweight
IRB 120’s compact design enables it to be mounted virtually anywhere at any angle without any restriction - for example inside a cell, on top of a machine or close to other robots. IRB 120 is also the most portable and easy to integrate on the market with its 25 kg weight. The smooth surfaces are easy to clean and the cables for air and customer signals are internally routed, all the way from the foot to the wrist, ensuring that integration is effortless.
Multipurpose
IRB 120 is ideal for a wide range of industries including the electronic, food and beverage, machinery, solar, pharmaceutical, medical and research sectors. The Food Grade Lubrication (NSF H1) option includes Clean Room ISO Class 5, which ensures uncompromising safety and hygiene for food and beverage applications.
Fast, accurate and agile
Designed with a light, aluminum structure, the motors ensure the robot is enabled with a fast acceleration, and can deliver accuracy and agility in any application.
Optimized working range
IRB 120 has a horizontal reach of 580 mm, the best in class stroke, the ability to reach 112 mm below its base and a very compact turning radius.
IRC5 Compact controller – optimized for small robots
ABB’s new IRC5 Compact controller presents the capabilities of the IRC5 controller in a compact format. It brings accuracy and motion control to applications which have been exclusive to large installations and enables easy commissioning through one phase power input, external connectors for all signals and a builtin expandable 16 in, 16 out, I/O system.
RobotStudio for offline programming enables manufacturers to simulate a production cell to find the optimal position for the robot, and provide offline programming to prevent costly downtime and delays to production.
Reduced footprint
The combination of the new lightweight architecture of the IRB 120 with the new IRC5 Compact controller introduces a significantly reduced footprint.
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Application:
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
ONE Industrial robot china KR 16 R2010 payload of 16 kg welding machine robot arm manipulator packing with fumigation wooden frame, WG:260KG
Company infomation:
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ:
Q. How Long will You Need before Delivery?
A: We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q. What is Your Payment Term?
A: Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q: What is Trade Assurance?
A: Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q: Does Trade Assurance Charge Fees?
A: No.Trade Assurance is free for both buyers andsuppliers.
Q: What Kind of Trade Terms Can You Do?
A: EX-WORKS,FOB,CFR,CIF,etc.
